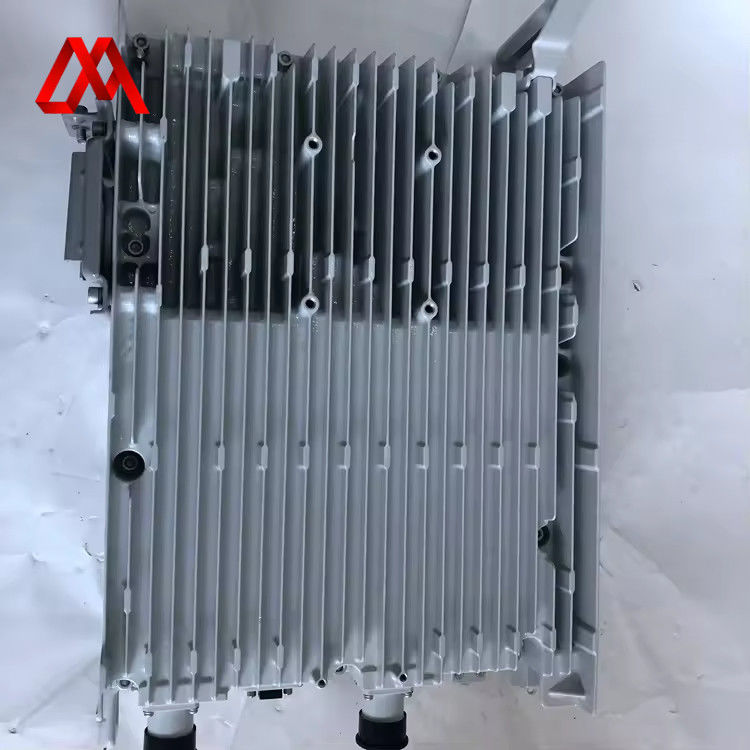

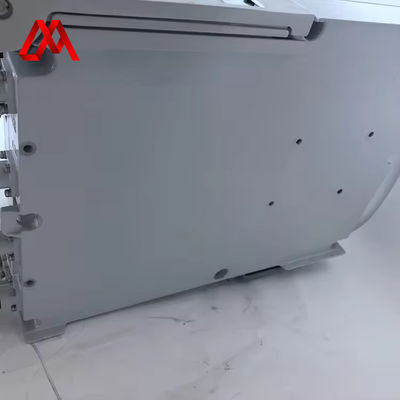

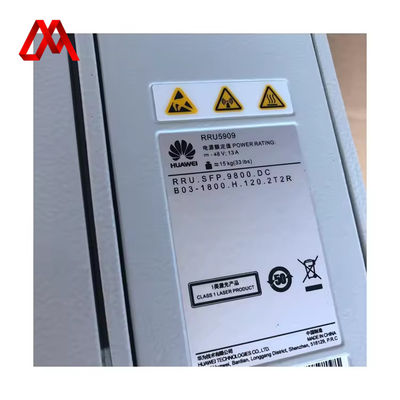

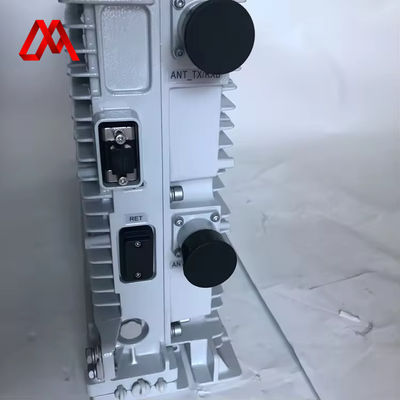

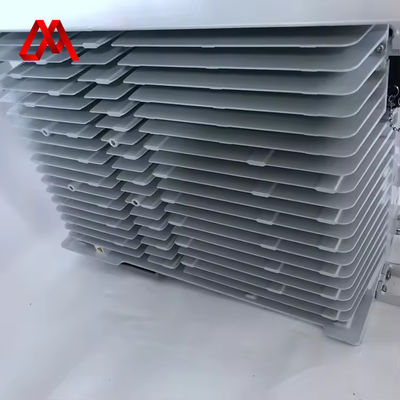

Stazione base Huawei 5G 1800mHz BTS RRU 5909 SFP.9800.DC B03 120.2T2R PPN

Marchio:	HUAWEI
Numero di modello:	RRU5909-1800 PPN
Dettagli dell' imballaggio:	Imballaggio interno in schiuma + imballaggio in cartone, in legno
Condizioni di pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Informazione dettagliata

Descrizione del prodotto

Informazione dettagliata

Luogo di origine:

Umidità di funzionamento:

BBU: dal 5% al 95%; RRU: dal 5% al 95%

Umidità di stoccaggio:

BBU: dal 5% al 95%; RRU: dal 5% al 95%

Protocolli supportati:

BBU: IP, TCP, UDP, SNMP; RRU: IP, TCP, UDP, SNMP

Interfacce supportate:

BBU: CPRI, Ethernet, SFP, USB; RRU: CPRI, Ethernet, SFP, USB

Peso:

BBU: 5,5 kg; RRU: 7 kg

Temperatura di funzionamento:

BBU: -40°C a +55°C; RRU: -40°C a +55°C

Temperatura di conservazione:

BBU: -40°C a +70°C; RRU: -40°C a +70°C

Tipo di prodotto:

Unità di banda base (BBU) e unità radio remota (RRU)

bande di frequenza supportate:

BBU: GSM, UMTS, LTE, 5G; RRU: GSM, UMTS, LTE, 5G

Dimensioni:

BBU: 442 mm x 220 mm x 43,6 mm; RRU: 442 mm x 220 mm x 43,6 mm

Norme sostenute:

BBU: 3GPP, ITU-T, IEEE; RRU: 3GPP, ITU-T, IEEE

Consumo di potenza massimo:

BBU: 400W; RRU: 200W

Tecnologie supportate:

BBU: 2G, 3G, 4G, 5G; RRU: 2G, 3G, 4G, 5G

Fornitore di energia:

BBU: AC da 100 a 240 V; RRU: DC da -48 a -60 V

Capacità di alimentazione:

2000 pezzi/settimana

Evidenziare:

Stazione base Huawei 5G a 1800 MHz

RRU stazione base Huawei 5G

rru 5909 Stazione base

Descrizione del prodotto

RRU5909 specifiche tecniche

bande di frequenza e RAT supportate

bande di frequenza e RAT supportate da un RRU5909

Banda di frequenza (MHz)	Banda definita dal protocollo	Banda di frequenza RX (MHz)	Banda di frequenza TX (MHz)	RAT	IBW (MHz)
1800+2100	Band 3/n3+Band 1/n1	1800: dal 1710 al 1785	1800: dal 1805 al 1880	1800 MHz: LTE FDD, GL, LM, GLM, LN (SUL), GLN (SUL), NR FDD, GN (FDD), LN (FDD), GLN (FDD), LMN (FDD), GLMN (FDD)	1800:40:00
		2100: dal 1920 al 1980	2100: dal 2110 al 2170	2100 MHz: UMTS, LTE FDD, UL, LN (SUL), ULN (SUL), NR FDD, UN (FDD), LN (FDD), ULN (FDD)	2100:40:00
				1800 MHz+2100 MHz: LTE FDD, GL, UL, GUL, LM, GLM, GULM, LN (SUL), GLN (SUL), ULN (SUL), GULN (SUL), NR FDD, GN (FDD), UN (FDD), LN (FDD), GUN (FDD), GLN (FDD), ULN (FDD), GULN (FDD), LMN (FDD),GLMN (FDD), GULMN (FDD)

Moduli TX/RX e capacità
Tabella 2 modalità TX/RX e capacità di un RRU5909 (1800 MHz+2100 MHz)
Banda di frequenza (MHz)	Banda definita dal protocollo	Modalità TX/RX (a)	Capacità (b)	Larghezza di banda supportata (MHz)
1800+2100	Band 3/n3+Band 1/n1	1800: 4T4R	GSM: 8 operatori	FDD LTE: 5/10/15/20
		2100: 4T4R	UMTS: 8 vettori	NR SUL: 15/20
			LTE FDD: 3 vettori (una banda) e 4 vettori (due bande)	NR FDD:
			LTE NB-IoT: 1 operatore	1800 MHz: 5/10/15/20/25/30
			NR SUL: 1 vettore	2100 MHz: 5/10/15/20/25/30/40
			NR FDD: 3 vettori (una banda) e 4 vettori (due bande)
a: mTnR nella colonna TX/RX Mode indica che il modulo RF utilizza m canali di trasmissione e n canali di ricezione.
b: il numero di vettori nella colonna Capacità si riferisce al numero massimo di vettori che possono essere configurati per il modulo con il RAT configurato;non il numero di vettori che possono essere configurati per un singolo canale. Per informazioni dettagliate sulle configurazioni di portatori a livello di modulo e di canale supportate negli scenari monomodo e multimodo, vedere la colonna Configurazione di potenza di uscita nella tabella seguente.Quando il modulo è utilizzato con una caratteristica, vedere le specifiche delle caratteristiche nella descrizione del parametro delle caratteristiche corrispondente per conoscere le configurazioni di vettore a livello di modulo o di canale supportate dopo l'attivazione della caratteristica.

RRU smontato, dove la foto mostra i componenti della RRU, quindi volevo condividere questa foto con voi.

Stazione base Huawei 5G 1800mHz BTS RRU 5909 SFP.9800.DC B03 120.2T2R PPN 0

L'unità radio remota (RRU): un'unità di elaborazione del segnale, un amplificatore di potenza,e un doppio trasmettitore che funziona per amplificare il segnale per trattarlo dai problemi di decadimento che si verificano a causa dell'altezza della torre o a causa della lunghezza dei cavi.

Funzioni

1- Trasmettere e ricevere segnali di banda base.

2- Modulare e demodulare i segnali a radiofrequenza.

3- elaborazione dei dati.

- Amplifica il segnale.

Componenti RRU

1-TRX e RX:

- Responsabile della trasformazione del vettore

- Responsabile della modulazione e demodulazione

- Aggiusta il guadagno di ritardo

2- amplificatore di potenza:

- Responsabile di amplificare il segnale.

3- alimentazione:

- Fornisce energia alle schede RRU.

4-Radio duplexerfiltrazione:

- ricevere filtro e trasmettere duplexer

Serie RRU Huawei

1-RRUModelli della serie 3000.

RRU3004, RRU3308v1, RRU3008v2, RRU3168, RRU3201, RRU3203, RRU3220, RRU3220E, RRU3221, RRU3222, RRU3229, RRU3230E, RRU3232, RRU3236E, RRU3240, RRU3249, RRU3251, RRU3252, RRU3253, RRU3256, RRU3259,RRU3260, RRU3262, RRU3268, RRU3269, RRU3276, RRU3278, RRU3278u, RRU3279, RRU3281, RRU3668, RRU3810E, RRU3804, RRU3805, RRU3806, RRU3808, RRU3821E, RRU3824, RRU3826, RRU3828, RRU3829, RRU3832, RRU3838,RRU3839, RRU3841, RRU3853, RRU3908v1, RRU3908v2, RRU3926, RRU3928, RRU3929, RRU3930E, RRU3936, RRU3938, RRU3939, RRU3942, RRU3952, RRU3952m, RRU3953, RRU3953w, RRU3958, RRU3959, RRU3959a, RRU3959w, RRU3961,RRU3962, RRU3965, RUR3971, RRU3971a

2- RRUSerie 5000Modelle.

RRU5251, RRU5254, RRU5258, RRU5301, RRU5304, RRU5304w, RRU5305, RRU5308, RRU5309, RRU5309w, RRU5336E, RRU5501, RRU5502, RRU5502N, RRU5502w, RRU5505, RRU5505N, RRU5507, RRU5508, RRU5509t, RRU5512,RR5512t, RRU5513, RRU5513t, RRU5513w, RRU5515t, RRU5519et, RRU5810, RRU5818, RRU5836E, RRU5862, RRU5901, RRU5901N, RRU5901W, RRU5903, RRU5903w, RRU5904, RRU5904N, RRU5904w, RRU5905, RRU5905w, RRU5909,RRU5909N, RRU5909s, RRU5935E

Potenza di uscita e configurazioni del vettore

Tabella 1 RRU della serie 3000
Modello RRU	XTXR	Banda di frequenza ((MHz)	RAT supportati	Parametri del dispositivo
RRU3004	2T2R	900	GSM	RRU3004
		1800
RRU3308v1	2T2R	850	GSM	RRU3308v1
		900
		1800
		1900
RRU3008v2	2T2R	900	GSM	RRU3008v2
RRU3168	8T8R	1900	LTE (TDD)	RRU3168
RRU3201	2T2R	700	LTE (FDD)	RRU3201
		2600
RRU3203	2T2R	700	LTE (FDD)	RRU3203
RRU3220	2T2R	800	LTE ((FDD),LM	RRU3220
RRU3220E	2T2R	1800	LTE (FDD)	RRU3220E
RRU3221	2T2R	2600	LTE (FDD)	RRU3221
RRU3222	2T2R	800	LTE ((FDD),LM	RRU3222
RRU3229	2T2R	2600	LTE (FDD)	RRU3229
RRU3230E	2T2R	1800	LTE (FDD), LTE (NB-IoT), LM	RRU3230E
RRU3232	4T4R	3500	LTE (TDD)	RRU3232
RRU3236E	2T2R	2300	LTE (TDD)	RRU3236E
		3500
RRU3240	2T4R	2600	LTE (FDD)	RRU3240
RRU3249	2T2R	700	LTE (FDD)	RRU3249
RRU3251	2T2R	2300	LTE (TDD)	RRU3251
RRU3252	4T4R	2300	LTE (TDD)	RRU3252
RRU3253	8T8R	2600	LTE (TDD)	RRU3253
RRU3256	4T4R	2300	LTE (TDD)	RRU3256
		2600
		3500
RRU3259	8T8R	2600	LTE (TDD)	RRU3259
RRU3260	2T4R	2600	LTE (FDD)	RRU3260
RRU3262	2T4R	700	LTE ((FDD),LM,LN ((SUL)	RRU3262
		850
		2600
RRU3268	2T2R	700	LTE ((FDD),LM	RRU3268
		800
		2600
RRU3269	2T2R	700	LTE ((FDD),LM	RRU3269
RRU3276	4T4R	2300	LTE (TDD)	RRU3276
		2600
RRU3278	8T8R	3500	LTE (TDD)	RRU3278
		3650
		3700
RRU3278u	8T8R	3500	LTE (TDD)	RRU3278u
RRU3279	8T8R	2300	LTE (TDD)	RRU3279
		2600
RRU3281	4T4R	2600	LTE (FDD)	RRU3281
RRU3668	2T2R	450	LTE (FDD)	RRU3668
RRU3810E	1T2R	850	UMTS	RRU3810E
		1900
		2100
RRU3804	1T2R	850	UMTS	RRU3804
		1900
		AWS
		2100
RRU3805	2T2R	850	UMTS	RRU3805
		1900
RRU3806	1T2R	2100	UMTS	RRU3806
RRU3808	2T2R	AWS	UMTS,LTE ((FDD),UL	RRU3808
		2100
RRU3821E	2T2R	1800	LTE (FDD)	RRU3821E
RRU3824	1T2R	2100	UMTS	RRU3824
RRU3826	1T2R	2100	UMTS	RRU3826
RRU3828	2T2R	2100	UMTS	RRU3828
RRU3829	2T2R	2100	UMTS	RRU3829
RRU3832	2T4R	AWS	UMTS,LTE ((FDD),UL	RRU3832
		2100
RRU3838	2T2R	2100	UMTS	RRU3838
RRU3839	2T2R	2100	UMTS	RRU3839
RRU3841	4T4R	AWS	LTE ((FDD),LM	RRU3841
RRU3853	2T4R	UMTS	UMTS	RRU3853
RRU3908v1	2T2R	850	GSM, UMTS	RRU3908v1
		900
		1800
		1900
RRU3908v2	2T2R	850	GSM, UMTS, GU	RRU3908v2
		900
RRU3926	1T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3926
		1800
RRU3928	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3928
RRU3929	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3929
RRU3930E	2T2R	2100	UMTS,LTE ((FDD),UL	RRU3930E
RRU3936	1T2R	850	GSM,UMTS,GU,LTE ((FDD),GL,UL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3936
		900
		1800
		1900
RRU3938	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3938
		1800
RRU3939	2T2R	1800	GSM,LTE ((FDD),GL,LM,GLM	RRU3939
RRU3942	2T4R	850	GSM,UMTS,LTE ((FDD),GU,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3942
		1900
RRU3952	2T4R	850	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3952
		2100
RRU3952m	2T4R	1800+2100	1800 MHz: GSM,LTE ((FDD),GL,LM,LN ((SUL),GLN ((SUL)	RRU3952m
		2100+1800	2100MHz:UMTS,LTE(FDD),UL
RRU3953	2T4R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3953
		1800
		1900
		2100
RRU3953w	2T4R	1800	GSM,LTE ((FDD),GL,GM,LM,GLM,LN ((SUL),GLN ((SUL)	RRU3953w
RRU3958	2T2R	2100	UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL)	RRU3958
RRU3959	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3959
		1800
		2100
RRU3959a	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3959a
		1800
		2100
RRU3959w	2T2R	1800	GSM,LTE ((FDD),GL,GM,LM,GLM,LN ((SUL),GLN ((SUL)	RRU3959w
RRU3961	2T2R	800+900EGSM	800 MHz:LTE (FDD),LTE (NB-IoT),LM	RRU3961
			900 EGSM:GSM,UMTS,GU
			800 MHz+900 EGSM:GL,UL,GUL
RRU3962	2T4R	1800+2100		RRU3962
			1800 MHz: LTE FDD, GL, LN (SUL), GLN (SUL)
			2100 MHz: UMTS, LTE FDD, UL, LN (SUL), ULN (SUL)
			1800 MHz+2100 MHz: LTE FDD, GL, UL, GUL, LN (SUL), GLN (SUL), ULN (SUL), GULN (SUL)
RRU3965	2T2R	800+900EGSM	800MHz:LTE ((FDD),LM,LN ((SUL)	RRU3965
			900 EGSM:UMTS,LTE(FDD),GU,GL,UL,GUL,GUM,GULM
			800MHz+900 EGSM:LTE(FDD),GL,UL,GUL,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL)
RUR3971	4T4R	1800	LTE (FDD), GL,LM,GLM,LN (SUL),GLN (SUL)	RUR3971
		1900
		AWS
		2100
RRU3971a	4T4R	1800	LTE (FDD), GL,LM,GLM,LN (SUL),GLN (SUL)	RRU3971a


Tabella 2 RRU della serie 5000
Modello RRU	XTXR	Banda di frequenza ((MHz)	RAT supportati	Parametri del dispositivo
RRU5251	4T4R	2300	LTE (TDD)	RRU5251
RRU5254	8T8R	2600	LTE (TDD), NR (TDD)	RRU5254
	4T4R	2300+2600	LTE (TDD), NR (TDD), TN (TDD)
RRU5258	8T8R	2300	LTE (TDD), NR (TDD), TN (TDD)	RRU5258
		2600
		3500
		3650
		3700
RRU5301	4T4R	800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5301
	4T0R	1400	LTE (FDD)
	4T4R	2600	LTE (FDD), NR (FDD), LN (FDD)
RRU5304	4T4R	2600	LTE (FDD), NR (FDD), LN (FDD)	RRU5304
RRU5304w	4T4R	700	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5304w
	4T4R	2600	LTE (FDD), NR (FDD), LN (FDD)
RRU5305	2T0R	1400	LTE (FDD)	RRU5305
RRU5308	2T2R	800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5308
RRU5309	2T2R	700	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5309
		800
RRU5309w	2T2R	800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5309w
RRU5336E	4T4R	2600	LTE (FDD)	RRU5336E
RRU5501	4T4R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5501
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLM (FDD),GULM (FDD)
RRU5502	4T4R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5502
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
	4T4R	AWS+PCS	AWS:UMTS,LTE (FDD),UL,LM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			PCS:UMTS,LTE (FDD),GU,GL,UL,LM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLM (FDD)
			AWS+PCS: UMTS,LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),ULMN(FDD),FDD
RRU5502N	4T4R	1800+2100	1800 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5502N
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),UL,LM,ULM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD),LMN (FDD),ULM (FDD)
RRU5502w	4T4R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5502w
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
RRU5505	2T2R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5505
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
RRU5505N	2T2R	1800+2100	1800 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5505N
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),UL,LM,ULM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD),LMN (FDD),ULM (FDD)
RRU5507	2T4R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5507
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
RRU5508	2T4R	700+850	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5508
			850 MHz: GSM, UMTS, LTE (FDD), GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),LN (FDD),GN (FDD),UN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			700MHz+850MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD),GULMN(FDD)
	2T4R	700+900	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900 MHz: GSM, UMTS, LTE (FDD), GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD)
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD),GULMN(FDD)
	2T4R	800+900	800 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900 MHz: GSM, UMTS, LTE (FDD), GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD),GULMN(FDD)
	2T4R	1800+2100	1800 MHz:LTE(FDD),GL,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD)
RR5509t	2T4R	700+800+900	800 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RR5509t
			900 MHz: GSM, UMTS, LTE (FDD), GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD)
			700MHz+800MHz:LTE(FDD),LM,LN(SUL),NR(FDD),LN(FDD),LMN(FDD
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),ULM (FDD),GULM (FDD),GULM (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULMN(FDD)
RRU5512	4T4R	700+850	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5512
			850 MHz: UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),LN(FDD),GN(FDD),UN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD)
			700MHz+850MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD),GULMN(FDD)
	4T4R	700+900	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900 MHz: UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD)
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD),GULMN(FDD)
RR5512t	4T4R	700+800+900	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RR5512t
			800 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900 MHz: UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD)
			700MHz+800MHz:LTE(FDD),LM,LN(SUL),NR(FDD),LN(FDD),LMN(FDD
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULMN(FDD)
RRU5513	4T4R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5513
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
RRU5513t	4T4R	1800+2100+2600	1800 MHz:LTE(FDD),GL,NR(FDD),GN(FDD),LN(SUL),GLN(SUL),LN(FDD),GLN(FDD),LM(FDD),GLM(FDD),LMN(FDD),GLM(FDD)	RRU5513t
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			2600MHz:LTE (FDD),NR (FDD),LN (FDD)
RRU5513w	4T4R	AWS+PCS	AWS:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD	RRU5513w
			PCS:UMTS,LTE (FDD),GU,GL,UL,GUL,LM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD)
			AWS+PCS: UMTS,LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),FDD),GULMN(FDD)
RRU5515t	2T2R	700+800+900	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5515t
			800MHz:LTE ((FDD),LM,LN ((SUL)
			900 MHz: GSM, UMTS, LTE (FDD), GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD)
			700MHz+800MHz:LTE (FDD),LM,NR (FDD),LN (FDD),LMN (FDD)
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULMN(FDD)
RRU5519et	2T4R	700+800+900	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5519et
			800 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900 MHz: GSM, UMTS, LTE (FDD), GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD)
			700MHz+800MHz:LTE(FDD),LM,LN(SUL),NR(FDD),LN(FDD),LMN(FDD
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULMN(FDD)
RRU5810	8T8R	3600	LTE (TDD), NR (TDD), TN (TDD)	RRU5810
RRU5818	8T8R	2300	LTE (TDD), NR (TDD), TN (TDD)	RRU5818
	8T8R	2600	LTE (TDD)
	8T8R	3500	LTE (TDD), NR (TDD), TN (TDD)
RRU5836E	4T4R	3500	LTE (TDD), NR (TDD)	RRU5836E
		3700
RRU5862	1800 MHz:	1800+2100	1800MHz:LTE(FDD),GL,LM,GLM	RRU5862
	GSM: 4T4R		2100MHz:UMTS,LTE(FDD),UL
	LTE ((FDD): 8T8R		1800 MHz+2100 MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM
	2100 MHz:
	UMTS: 2T4R
	LTE ((FDD): 8T8R
RRU5901	4T4R	1800	LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD)	RRU5901
	4T4R	2100	UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
		AWS	UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
RRU5901N	4T4R	1800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5901N
RRU5901W	4T4R	1800	GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD)	RRU5901W
RRU5903	2T4R	850	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GLM (FDD)	RRU5903
	2T4R	900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
	2T4R	1900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,UM,LM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD)
RRU5903w	2T4R	850	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GLM,ULM,GUM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),UMN (FDD),GLN (FDD)	RRU5903w
RRU5904	4T4R	1800	GSM,LTE (FDD),GL,LTE (NB-IoT),GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),MN (FDD),LMN (FDD)	RRU5904
	4T4R	2100	UMTS,LTE (FDD),UL,ULM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
RRU5904N	4T4R	1800	LTE (FDD),LTE (NB-IoT),LM,LN (SUL),NR (FDD),LN (FDD),MN (FDD),LMN (FDD)	RRU5904N
RRU5904w	4T4R	850	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GLM,ULM,GUM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),UMN (FDD),GLN (FDD)	RRU5904w
	4T4R	1800	GSM,LTE (FDD),GL,LTE (NB-IoT),GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),MN (FDD),GMN (FDD),LMN (FDD),GLM (FDD)
	4T4R	1900	UMTS,LTE (FDD),GU,GL,UL,GUL,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD)
RRU5905	2T2R	900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),GUMN	RRU5905
	2T2R	1800	GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD)
	2T2R	2100	UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
RRU5905w	2T2R	1800	GSM,LTE (FDD),GL,GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD)	RRU5905w
RRU5909	2T2R	700	LTE (FDD),LM,NR (SUL),LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5909
	2T2R	900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),GUMN
	2T2R	1800	GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD)
	2T2R	2100	UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
RRU5909N	2T2R	1800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5909N
RRU5909	2T2R	1800	LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD)	RRU5909
	2T2R	2100	UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
RRU5935E	2T2R	1800+2100	1800 MHz:LTE (FDD),GL,LM,GLM,NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLMN (FDD)	RRU5935E

Tag:

Dettagli dei prodotti

Casa. > prodotti >

HUAWEI BBU RRU

Stazione base Huawei 5G 1800mHz BTS RRU 5909 SFP.9800.DC B03 120.2T2R PPN

Tutte le categorie

Stazione base Huawei 5G 1800mHz BTS RRU 5909 SFP.9800.DC B03 120.2T2R PPN

Marchio:	HUAWEI
Numero di modello:	RRU5909-1800 PPN
Dettagli dell' imballaggio:	Imballaggio interno in schiuma + imballaggio in cartone, in legno
Condizioni di pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Informazione dettagliata

Descrizione del prodotto

Informazione dettagliata

Luogo di origine:

Cina

Marca:

HUAWEI

Numero di modello:

RRU5909-1800 PPN

Umidità di funzionamento:

BBU: dal 5% al 95%; RRU: dal 5% al 95%

Umidità di stoccaggio:

BBU: dal 5% al 95%; RRU: dal 5% al 95%

Protocolli supportati:

BBU: IP, TCP, UDP, SNMP; RRU: IP, TCP, UDP, SNMP

Interfacce supportate:

BBU: CPRI, Ethernet, SFP, USB; RRU: CPRI, Ethernet, SFP, USB

Peso:

BBU: 5,5 kg; RRU: 7 kg

Temperatura di funzionamento:

BBU: -40°C a +55°C; RRU: -40°C a +55°C

Temperatura di conservazione:

BBU: -40°C a +70°C; RRU: -40°C a +70°C

Tipo di prodotto:

Unità di banda base (BBU) e unità radio remota (RRU)

bande di frequenza supportate:

BBU: GSM, UMTS, LTE, 5G; RRU: GSM, UMTS, LTE, 5G

Dimensioni:

BBU: 442 mm x 220 mm x 43,6 mm; RRU: 442 mm x 220 mm x 43,6 mm

Norme sostenute:

BBU: 3GPP, ITU-T, IEEE; RRU: 3GPP, ITU-T, IEEE

Consumo di potenza massimo:

BBU: 400W; RRU: 200W

Tecnologie supportate:

BBU: 2G, 3G, 4G, 5G; RRU: 2G, 3G, 4G, 5G

Fornitore di energia:

BBU: AC da 100 a 240 V; RRU: DC da -48 a -60 V

Imballaggi particolari:

Imballaggio interno in schiuma + imballaggio in cartone, in legno

Tempi di consegna:

5-8 giorni lavorativi

Termini di pagamento:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Capacità di alimentazione:

2000 pezzi/settimana

Evidenziare:

Stazione base Huawei 5G a 1800 MHz

RRU stazione base Huawei 5G

rru 5909 Stazione base

Descrizione del prodotto

RRU5909 specifiche tecniche

bande di frequenza e RAT supportate

bande di frequenza e RAT supportate da un RRU5909

Banda di frequenza (MHz)	Banda definita dal protocollo	Banda di frequenza RX (MHz)	Banda di frequenza TX (MHz)	RAT	IBW (MHz)
1800+2100	Band 3/n3+Band 1/n1	1800: dal 1710 al 1785	1800: dal 1805 al 1880	1800 MHz: LTE FDD, GL, LM, GLM, LN (SUL), GLN (SUL), NR FDD, GN (FDD), LN (FDD), GLN (FDD), LMN (FDD), GLMN (FDD)	1800:40:00
		2100: dal 1920 al 1980	2100: dal 2110 al 2170	2100 MHz: UMTS, LTE FDD, UL, LN (SUL), ULN (SUL), NR FDD, UN (FDD), LN (FDD), ULN (FDD)	2100:40:00
				1800 MHz+2100 MHz: LTE FDD, GL, UL, GUL, LM, GLM, GULM, LN (SUL), GLN (SUL), ULN (SUL), GULN (SUL), NR FDD, GN (FDD), UN (FDD), LN (FDD), GUN (FDD), GLN (FDD), ULN (FDD), GULN (FDD), LMN (FDD),GLMN (FDD), GULMN (FDD)

Moduli TX/RX e capacità
Tabella 2 modalità TX/RX e capacità di un RRU5909 (1800 MHz+2100 MHz)
Banda di frequenza (MHz)	Banda definita dal protocollo	Modalità TX/RX (a)	Capacità (b)	Larghezza di banda supportata (MHz)
1800+2100	Band 3/n3+Band 1/n1	1800: 4T4R	GSM: 8 operatori	FDD LTE: 5/10/15/20
		2100: 4T4R	UMTS: 8 vettori	NR SUL: 15/20
			LTE FDD: 3 vettori (una banda) e 4 vettori (due bande)	NR FDD:
			LTE NB-IoT: 1 operatore	1800 MHz: 5/10/15/20/25/30
			NR SUL: 1 vettore	2100 MHz: 5/10/15/20/25/30/40
			NR FDD: 3 vettori (una banda) e 4 vettori (due bande)
a: mTnR nella colonna TX/RX Mode indica che il modulo RF utilizza m canali di trasmissione e n canali di ricezione.
b: il numero di vettori nella colonna Capacità si riferisce al numero massimo di vettori che possono essere configurati per il modulo con il RAT configurato;non il numero di vettori che possono essere configurati per un singolo canale. Per informazioni dettagliate sulle configurazioni di portatori a livello di modulo e di canale supportate negli scenari monomodo e multimodo, vedere la colonna Configurazione di potenza di uscita nella tabella seguente.Quando il modulo è utilizzato con una caratteristica, vedere le specifiche delle caratteristiche nella descrizione del parametro delle caratteristiche corrispondente per conoscere le configurazioni di vettore a livello di modulo o di canale supportate dopo l'attivazione della caratteristica.

RRU smontato, dove la foto mostra i componenti della RRU, quindi volevo condividere questa foto con voi.

Stazione base Huawei 5G 1800mHz BTS RRU 5909 SFP.9800.DC B03 120.2T2R PPN 0

Funzioni

1- Trasmettere e ricevere segnali di banda base.

2- Modulare e demodulare i segnali a radiofrequenza.

3- elaborazione dei dati.

- Amplifica il segnale.

Componenti RRU

1-TRX e RX:

- Responsabile della trasformazione del vettore

- Responsabile della modulazione e demodulazione

- Aggiusta il guadagno di ritardo

2- amplificatore di potenza:

- Responsabile di amplificare il segnale.

3- alimentazione:

- Fornisce energia alle schede RRU.

4-Radio duplexerfiltrazione:

- ricevere filtro e trasmettere duplexer

Serie RRU Huawei

1-RRUModelli della serie 3000.

2- RRUSerie 5000Modelle.

Potenza di uscita e configurazioni del vettore

Tabella 1 RRU della serie 3000
Modello RRU	XTXR	Banda di frequenza ((MHz)	RAT supportati	Parametri del dispositivo
RRU3004	2T2R	900	GSM	RRU3004
		1800
RRU3308v1	2T2R	850	GSM	RRU3308v1
		900
		1800
		1900
RRU3008v2	2T2R	900	GSM	RRU3008v2
RRU3168	8T8R	1900	LTE (TDD)	RRU3168
RRU3201	2T2R	700	LTE (FDD)	RRU3201
		2600
RRU3203	2T2R	700	LTE (FDD)	RRU3203
RRU3220	2T2R	800	LTE ((FDD),LM	RRU3220
RRU3220E	2T2R	1800	LTE (FDD)	RRU3220E
RRU3221	2T2R	2600	LTE (FDD)	RRU3221
RRU3222	2T2R	800	LTE ((FDD),LM	RRU3222
RRU3229	2T2R	2600	LTE (FDD)	RRU3229
RRU3230E	2T2R	1800	LTE (FDD), LTE (NB-IoT), LM	RRU3230E
RRU3232	4T4R	3500	LTE (TDD)	RRU3232
RRU3236E	2T2R	2300	LTE (TDD)	RRU3236E
		3500
RRU3240	2T4R	2600	LTE (FDD)	RRU3240
RRU3249	2T2R	700	LTE (FDD)	RRU3249
RRU3251	2T2R	2300	LTE (TDD)	RRU3251
RRU3252	4T4R	2300	LTE (TDD)	RRU3252
RRU3253	8T8R	2600	LTE (TDD)	RRU3253
RRU3256	4T4R	2300	LTE (TDD)	RRU3256
		2600
		3500
RRU3259	8T8R	2600	LTE (TDD)	RRU3259
RRU3260	2T4R	2600	LTE (FDD)	RRU3260
RRU3262	2T4R	700	LTE ((FDD),LM,LN ((SUL)	RRU3262
		850
		2600
RRU3268	2T2R	700	LTE ((FDD),LM	RRU3268
		800
		2600
RRU3269	2T2R	700	LTE ((FDD),LM	RRU3269
RRU3276	4T4R	2300	LTE (TDD)	RRU3276
		2600
RRU3278	8T8R	3500	LTE (TDD)	RRU3278
		3650
		3700
RRU3278u	8T8R	3500	LTE (TDD)	RRU3278u
RRU3279	8T8R	2300	LTE (TDD)	RRU3279
		2600
RRU3281	4T4R	2600	LTE (FDD)	RRU3281
RRU3668	2T2R	450	LTE (FDD)	RRU3668
RRU3810E	1T2R	850	UMTS	RRU3810E
		1900
		2100
RRU3804	1T2R	850	UMTS	RRU3804
		1900
		AWS
		2100
RRU3805	2T2R	850	UMTS	RRU3805
		1900
RRU3806	1T2R	2100	UMTS	RRU3806
RRU3808	2T2R	AWS	UMTS,LTE ((FDD),UL	RRU3808
		2100
RRU3821E	2T2R	1800	LTE (FDD)	RRU3821E
RRU3824	1T2R	2100	UMTS	RRU3824
RRU3826	1T2R	2100	UMTS	RRU3826
RRU3828	2T2R	2100	UMTS	RRU3828
RRU3829	2T2R	2100	UMTS	RRU3829
RRU3832	2T4R	AWS	UMTS,LTE ((FDD),UL	RRU3832
		2100
RRU3838	2T2R	2100	UMTS	RRU3838
RRU3839	2T2R	2100	UMTS	RRU3839
RRU3841	4T4R	AWS	LTE ((FDD),LM	RRU3841
RRU3853	2T4R	UMTS	UMTS	RRU3853
RRU3908v1	2T2R	850	GSM, UMTS	RRU3908v1
		900
		1800
		1900
RRU3908v2	2T2R	850	GSM, UMTS, GU	RRU3908v2
		900
RRU3926	1T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3926
		1800
RRU3928	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3928
RRU3929	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3929
RRU3930E	2T2R	2100	UMTS,LTE ((FDD),UL	RRU3930E
RRU3936	1T2R	850	GSM,UMTS,GU,LTE ((FDD),GL,UL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3936
		900
		1800
		1900
RRU3938	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3938
		1800
RRU3939	2T2R	1800	GSM,LTE ((FDD),GL,LM,GLM	RRU3939
RRU3942	2T4R	850	GSM,UMTS,LTE ((FDD),GU,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3942
		1900
RRU3952	2T4R	850	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3952
		2100
RRU3952m	2T4R	1800+2100	1800 MHz: GSM,LTE ((FDD),GL,LM,LN ((SUL),GLN ((SUL)	RRU3952m
		2100+1800	2100MHz:UMTS,LTE(FDD),UL
RRU3953	2T4R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3953
		1800
		1900
		2100
RRU3953w	2T4R	1800	GSM,LTE ((FDD),GL,GM,LM,GLM,LN ((SUL),GLN ((SUL)	RRU3953w
RRU3958	2T2R	2100	UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL)	RRU3958
RRU3959	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3959
		1800
		2100
RRU3959a	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3959a
		1800
		2100
RRU3959w	2T2R	1800	GSM,LTE ((FDD),GL,GM,LM,GLM,LN ((SUL),GLN ((SUL)	RRU3959w
RRU3961	2T2R	800+900EGSM	800 MHz:LTE (FDD),LTE (NB-IoT),LM	RRU3961
			900 EGSM:GSM,UMTS,GU
			800 MHz+900 EGSM:GL,UL,GUL
RRU3962	2T4R	1800+2100		RRU3962
			1800 MHz: LTE FDD, GL, LN (SUL), GLN (SUL)
			2100 MHz: UMTS, LTE FDD, UL, LN (SUL), ULN (SUL)
			1800 MHz+2100 MHz: LTE FDD, GL, UL, GUL, LN (SUL), GLN (SUL), ULN (SUL), GULN (SUL)
RRU3965	2T2R	800+900EGSM	800MHz:LTE ((FDD),LM,LN ((SUL)	RRU3965
			900 EGSM:UMTS,LTE(FDD),GU,GL,UL,GUL,GUM,GULM
			800MHz+900 EGSM:LTE(FDD),GL,UL,GUL,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL)
RUR3971	4T4R	1800	LTE (FDD), GL,LM,GLM,LN (SUL),GLN (SUL)	RUR3971
		1900
		AWS
		2100
RRU3971a	4T4R	1800	LTE (FDD), GL,LM,GLM,LN (SUL),GLN (SUL)	RRU3971a


Tabella 2 RRU della serie 5000
Modello RRU	XTXR	Banda di frequenza ((MHz)	RAT supportati	Parametri del dispositivo
RRU5251	4T4R	2300	LTE (TDD)	RRU5251
RRU5254	8T8R	2600	LTE (TDD), NR (TDD)	RRU5254
	4T4R	2300+2600	LTE (TDD), NR (TDD), TN (TDD)
RRU5258	8T8R	2300	LTE (TDD), NR (TDD), TN (TDD)	RRU5258
		2600
		3500
		3650
		3700
RRU5301	4T4R	800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5301
	4T0R	1400	LTE (FDD)
	4T4R	2600	LTE (FDD), NR (FDD), LN (FDD)
RRU5304	4T4R	2600	LTE (FDD), NR (FDD), LN (FDD)	RRU5304
RRU5304w	4T4R	700	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5304w
	4T4R	2600	LTE (FDD), NR (FDD), LN (FDD)
RRU5305	2T0R	1400	LTE (FDD)	RRU5305
RRU5308	2T2R	800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5308
RRU5309	2T2R	700	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5309
		800
RRU5309w	2T2R	800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5309w
RRU5336E	4T4R	2600	LTE (FDD)	RRU5336E
RRU5501	4T4R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5501
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLM (FDD),GULM (FDD)
RRU5502	4T4R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5502
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
	4T4R	AWS+PCS	AWS:UMTS,LTE (FDD),UL,LM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			PCS:UMTS,LTE (FDD),GU,GL,UL,LM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLM (FDD)
			AWS+PCS: UMTS,LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),ULMN(FDD),FDD
RRU5502N	4T4R	1800+2100	1800 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5502N
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),UL,LM,ULM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD),LMN (FDD),ULM (FDD)
RRU5502w	4T4R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5502w
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
RRU5505	2T2R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5505
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
RRU5505N	2T2R	1800+2100	1800 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5505N
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),UL,LM,ULM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD),LMN (FDD),ULM (FDD)
RRU5507	2T4R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5507
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
RRU5508	2T4R	700+850	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5508
			850 MHz: GSM, UMTS, LTE (FDD), GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),LN (FDD),GN (FDD),UN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			700MHz+850MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD),GULMN(FDD)
	2T4R	700+900	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900 MHz: GSM, UMTS, LTE (FDD), GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD)
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD),GULMN(FDD)
	2T4R	800+900	800 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900 MHz: GSM, UMTS, LTE (FDD), GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD),GULMN(FDD)
	2T4R	1800+2100	1800 MHz:LTE(FDD),GL,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD)
RR5509t	2T4R	700+800+900	800 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RR5509t
			900 MHz: GSM, UMTS, LTE (FDD), GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD)
			700MHz+800MHz:LTE(FDD),LM,LN(SUL),NR(FDD),LN(FDD),LMN(FDD
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),ULM (FDD),GULM (FDD),GULM (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULMN(FDD)
RRU5512	4T4R	700+850	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5512
			850 MHz: UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),LN(FDD),GN(FDD),UN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD)
			700MHz+850MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD),GULMN(FDD)
	4T4R	700+900	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900 MHz: UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD)
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD),GULMN(FDD)
RR5512t	4T4R	700+800+900	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RR5512t
			800 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900 MHz: UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD)
			700MHz+800MHz:LTE(FDD),LM,LN(SUL),NR(FDD),LN(FDD),LMN(FDD
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULMN(FDD)
RRU5513	4T4R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5513
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
RRU5513t	4T4R	1800+2100+2600	1800 MHz:LTE(FDD),GL,NR(FDD),GN(FDD),LN(SUL),GLN(SUL),LN(FDD),GLN(FDD),LM(FDD),GLM(FDD),LMN(FDD),GLM(FDD)	RRU5513t
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			2600MHz:LTE (FDD),NR (FDD),LN (FDD)
RRU5513w	4T4R	AWS+PCS	AWS:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD	RRU5513w
			PCS:UMTS,LTE (FDD),GU,GL,UL,GUL,LM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD)
			AWS+PCS: UMTS,LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),FDD),GULMN(FDD)
RRU5515t	2T2R	700+800+900	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5515t
			800MHz:LTE ((FDD),LM,LN ((SUL)
			900 MHz: GSM, UMTS, LTE (FDD), GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD)
			700MHz+800MHz:LTE (FDD),LM,NR (FDD),LN (FDD),LMN (FDD)
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULMN(FDD)
RRU5519et	2T4R	700+800+900	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5519et
			800 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900 MHz: GSM, UMTS, LTE (FDD), GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD)
			700MHz+800MHz:LTE(FDD),LM,LN(SUL),NR(FDD),LN(FDD),LMN(FDD
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULMN(FDD)
RRU5810	8T8R	3600	LTE (TDD), NR (TDD), TN (TDD)	RRU5810
RRU5818	8T8R	2300	LTE (TDD), NR (TDD), TN (TDD)	RRU5818
	8T8R	2600	LTE (TDD)
	8T8R	3500	LTE (TDD), NR (TDD), TN (TDD)
RRU5836E	4T4R	3500	LTE (TDD), NR (TDD)	RRU5836E
		3700
RRU5862	1800 MHz:	1800+2100	1800MHz:LTE(FDD),GL,LM,GLM	RRU5862
	GSM: 4T4R		2100MHz:UMTS,LTE(FDD),UL
	LTE ((FDD): 8T8R		1800 MHz+2100 MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM
	2100 MHz:
	UMTS: 2T4R
	LTE ((FDD): 8T8R
RRU5901	4T4R	1800	LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD)	RRU5901
	4T4R	2100	UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
		AWS	UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
RRU5901N	4T4R	1800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5901N
RRU5901W	4T4R	1800	GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD)	RRU5901W
RRU5903	2T4R	850	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GLM (FDD)	RRU5903
	2T4R	900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
	2T4R	1900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,UM,LM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD)
RRU5903w	2T4R	850	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GLM,ULM,GUM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),UMN (FDD),GLN (FDD)	RRU5903w
RRU5904	4T4R	1800	GSM,LTE (FDD),GL,LTE (NB-IoT),GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),MN (FDD),LMN (FDD)	RRU5904
	4T4R	2100	UMTS,LTE (FDD),UL,ULM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
RRU5904N	4T4R	1800	LTE (FDD),LTE (NB-IoT),LM,LN (SUL),NR (FDD),LN (FDD),MN (FDD),LMN (FDD)	RRU5904N
RRU5904w	4T4R	850	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GLM,ULM,GUM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),UMN (FDD),GLN (FDD)	RRU5904w
	4T4R	1800	GSM,LTE (FDD),GL,LTE (NB-IoT),GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),MN (FDD),GMN (FDD),LMN (FDD),GLM (FDD)
	4T4R	1900	UMTS,LTE (FDD),GU,GL,UL,GUL,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD)
RRU5905	2T2R	900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),GUMN	RRU5905
	2T2R	1800	GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD)
	2T2R	2100	UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
RRU5905w	2T2R	1800	GSM,LTE (FDD),GL,GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD)	RRU5905w
RRU5909	2T2R	700	LTE (FDD),LM,NR (SUL),LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5909
	2T2R	900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),GUMN
	2T2R	1800	GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD)
	2T2R	2100	UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
RRU5909N	2T2R	1800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5909N
RRU5909	2T2R	1800	LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD)	RRU5909
	2T2R	2100	UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
RRU5935E	2T2R	1800+2100	1800 MHz:LTE (FDD),GL,LM,GLM,NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLMN (FDD)	RRU5935E

Tag:

Nokia BBU

Ericsson BBU

HUAWEI BBU RRU

Drive del hard disk

Punto di accesso

Switch Ethernet

Nokia BBU

Ericsson BBU

HUAWEI BBU RRU

Drive del hard disk

Punto di accesso

Switch Ethernet

Dettagli dei prodotti

Nokia BBU

Ericsson BBU

HUAWEI BBU RRU

Drive del hard disk

Punto di accesso

Switch Ethernet

Stazione base Huawei 5G 1800mHz BTS RRU 5909 SFP.9800.DC B03 120.2T2R PPN

Stazione base Huawei 5G a 1800 MHz

RRU stazione base Huawei 5G

rru 5909 Stazione base

Huawei RRU

Unità di controllo remoto radio rru

Huawei 5G base station

Dettagli dei prodotti

Nokia BBU

Ericsson BBU

HUAWEI BBU RRU

Drive del hard disk

Punto di accesso

Switch Ethernet

Stazione base Huawei 5G 1800mHz BTS RRU 5909 SFP.9800.DC B03 120.2T2R PPN

Stazione base Huawei 5G a 1800 MHz

RRU stazione base Huawei 5G

rru 5909 Stazione base

Huawei RRU

Unità di controllo remoto radio rru

Huawei 5G base station
